Open WebUI Integration¶

The demo includes two Open WebUI Functions over LGOS APIs registered in Bifrost:

demo/ui/openwebui/src/lgos_openwebui/functions/generic/ is the modular source for a manifold Pipe for all registered graphs. It forwards standard Chat Completions chunks, native tools, citations, and graph-specific runtime settings, and adapts LGOS interrupts to Open WebUI's native question UI.
demo/ui/openwebui/src/lgos_openwebui/functions/uservalves_simple.py keeps a static UserValves design as a small single-model example.

The sync command also generates one Open WebUI Workspace Model per discovered LGOS model. Each Workspace Model wraps the corresponding manifold model and projects its LGOS settings schema into the pinned release's native Chat Variables form.

Setup¶

Start the official Open WebUI image:

cd demo
cp .env.example .env
docker compose -f docker/compose/demo.yml up --wait lgos-openwebui

Then run the independent synchronization project locally:

make sync-openwebui

The sync command signs in through /api/v1/auths/signin, creates or updates the bundled Functions, lists provider-qualified LGOS models from Bifrost's /v1 catalog, retrieves detailed metadata through /openai_passthrough/v1, and bulk-imports each generated Workspace Model with an active, public, hidden override for its manifold base. Run it again after changing a Function, the Bifrost provider catalog, or a graph's client settings schema.

Generated Workspace Model descriptions come from the selected graph's required GraphConfig.description. The sync marks a model as Limited functionality when the API omits a description.

After importing the current catalog, sync deletes obsolete generated lgos.* Workspace Models and generic.* base visibility records. It does not delete bundled Functions or unrelated user-managed Workspace Models. New generated Workspace Models are public; later syncs preserve their access grants and active state. The sync owns the generated bases' hidden, public, and active state.

The command discovers every top-level .py file and directory-backed Function in that directory, except entries whose names start with _. A modular Function directory contains function.py for its frontmatter and entrypoint; the Generic Function's modules are flattened into one executable source string at sync time because Open WebUI stores each Function directly in its database. The filename stem or directory name is the Function ID, and the required Open WebUI frontmatter title is its display name. Function IDs must be lowercase Python identifiers.

The typed demo/ui/openwebui/src/lgos_openwebui/settings.py model defines its environment names, defaults, and descriptions. The shared .env.example configures the local sync command. Set secrets in the environment rather than passing them on the command line. Point the sync client and the Function valve below at the same deployment; their hostnames differ when one runs on the host and the other runs inside Compose.

Choose a generated entry such as LGOS / lgos-a/simple-graph to use Chat Variables. Its Workspace Model ID is lgos.lgos-a/simple-graph, and its base model is generic.lgos-a/simple-graph. The raw Generic / ... manifold entry remains active and public but is hidden from the chat selector, following Open WebUI's curated-interface guidance. UserValves-Simple / simple-graph remains available as the static alternative.

Configure OPENAI_API_BASE_URL, OPENAI_CATALOG_BASE_URL, OPENAI_API_KEY, and OPENAI_API_TIMEOUT in the generic Function's admin valves. The Pydantic valve model in the Function is the source of truth for their defaults and descriptions. The Function lists the Bifrost catalog once, keeps models owned by langgraph-openai-serve, and exposes Bifrost's existing provider/model IDs. For detailed retrieval and inference, it removes the provider prefix from the model and sends it as x-model-provider through Bifrost pass-through. The static UserValves Function accepts one provider-qualified MODEL and uses the same routing rule. Open WebUI stores Function code in its database, so a bind mount of the Python file does not update it.

The generic manifold uses only Bifrost's catalog for discovery. It retrieves detailed LGOS metadata after a model is selected for chat, when settings and capability checks need it. The sync command performs the same detailed retrieval before it generates Workspace Models and their Chat Variables.

Limited Functionality¶

Every generated model remains visible when its pass-through detail response lacks the required langgraph_openai_serve extension. Its name and description say Limited functionality. At chat time both bundled Pipes also emit an Open WebUI notification with warning severity. Standard assistant text may still work; runtime settings, client events, and interrupts are not assumed.

Runtime Settings¶

LGOS remains the schema and default-value source of truth. The sync command uses the same deliberately small JSON Schema subset as the Chainlit demo:

boolean with a boolean default becomes a checkbox;
string enum with a valid string default becomes a selector;
string with a string default becomes a text input;
nested objects, arrays, numbers, and unsupported schemas are omitted.

Open WebUI stores Chat Variable values on the conversation. Select a generated LGOS model, then use the Chat Variables control beside the message input. Since LGOS supplies defaults for every setting, the form does not block the first message merely to confirm them.

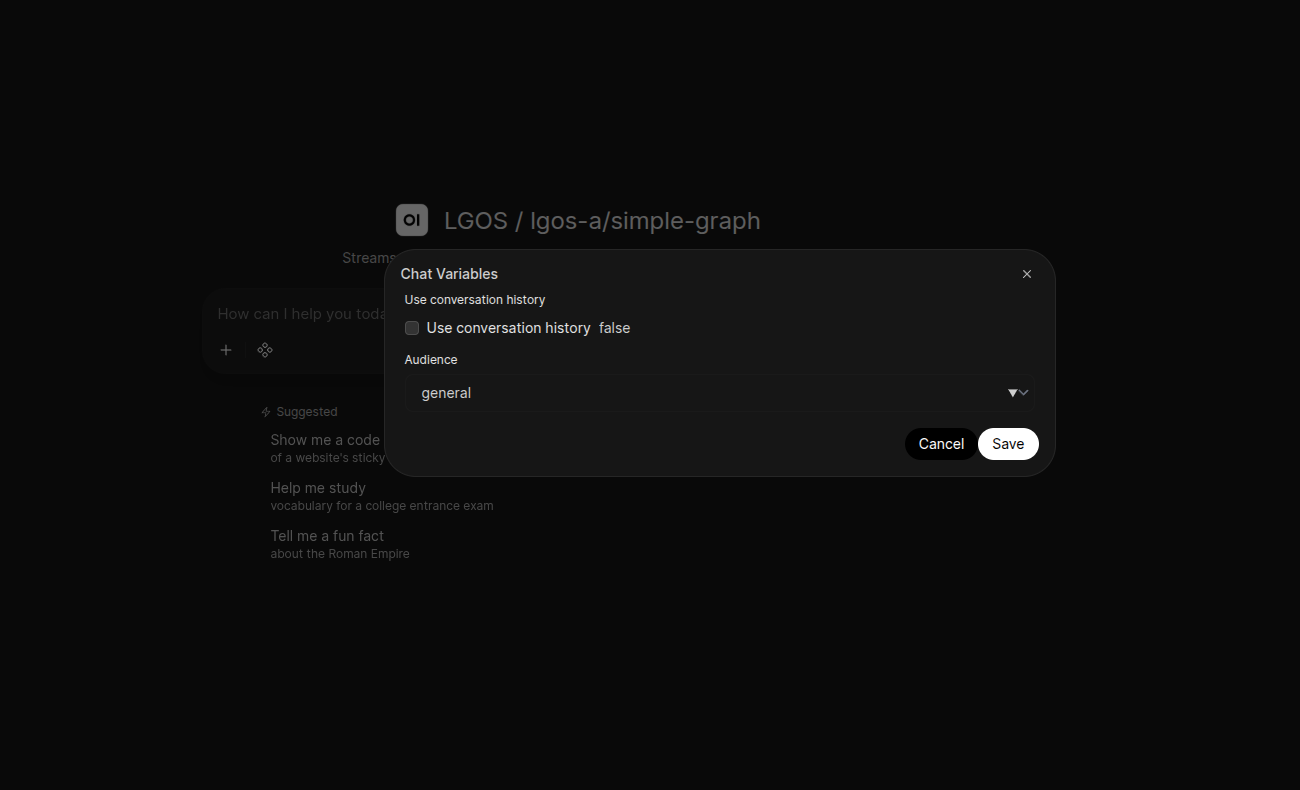

Open WebUI Chat Variables showing conversation-history and audience controls

Runtime settings synchronized from lgos-a/simple-graph and rendered as native Open WebUI Chat Variables.

When a chat has values, the Pipe retrieves the selected model's current LGOS metadata, ignores names no longer present, removes values equal to current defaults, and sends only changes as metadata.langgraph_runtime_settings. LGOS performs the authoritative runtime validation.

Both bundled Functions also map Open WebUI's stable chat_id to metadata.session_id on every completion. Langfuse can therefore group the chat's independent request traces into one session, while Open WebUI continues to own and resend the conversation history. The generic Pipe also forwards the opaque Open WebUI user ID as the standard OpenAI user; persistent-plot-agent uses both values to scope its chart document. Interrupt resumes reuse the same conversation value. See the persistent plot agent ownership flow for the API Store and Open WebUI persistence boundaries.

The Workspace Model schema is a generated projection, not a second configuration source. Open WebUI does not fetch a remote schema when the model selector changes, so rerun make sync-openwebui after an LGOS schema change. Model selection then switches among the already-synchronized native forms.

Static Alternative¶

uservalves_simple.py remains useful for one fixed graph when settings are intentionally hand-maintained per user and dynamic discovery or per-chat values are unnecessary. Its fields are illustrative; generated Workspace Models still take their schemas only from LGOS.

Pinned Open WebUI contract

The demo pins Open WebUI v0.11.3. The sync imports its native meta.chat_variables_schema model metadata directly instead of putting form declarations in a system prompt. This preserves JSON booleans and ensures UI configuration never becomes graph prompt content. This behavior is version-specific; rerun the Open WebUI sync and model tests before changing the image pin.

Streaming, Status, And Citations¶

The general manifold Pipe honors Open WebUI's requested Chat Completions mode. Streaming requests pass standard Chat Completion chunks through unchanged, and non-streaming requests return the full Chat Completion object. Open WebUI owns standard stream parsing, including assistant text, finish reasons, usage, tool calls, and citation annotations. Inline citation markers remain part of the assistant content. Non-streaming requests do not replay status or artifact events. The static example streams assistant text only.

Keep streaming enabled

In Open WebUI v0.11.3, native citation sources, tool calls, and ask_user use its streaming middleware. Non-streaming responses preserve annotations and tool calls, but the UI does not render their native controls.

The manifold Pipe opts into LGOS client stream events only when model retrieval advertises client_events, and maps every portable status update to Open WebUI's native status events. Open WebUI saves each update in the assistant message's statusHistory; done=False displays an active shimmer, done=True stops it, and hidden=True keeps the history entry out of the current display. Persisted statuses survive a reload or closed tab. The Pipe translates the demo's versioned semantic chart artifact to Plotly using the official versioned Plotly.js CDN, then sends Open WebUI's persistent embeds event. The embedded document reports its rendered height to Open WebUI so responsive charts are not clipped by the iframe's initial height. The browser needs access to cdn.plot.ly; no same-origin iframe setting is required. Other progress and artifact kinds remain ignored. Shared prompts and graph behavior are documented under Events And Citations and Persistent Plot Agent.

The adapter deliberately does not turn status updates into OpenAI tool calls. Open WebUI treats a tool call as work it must execute, but LGOS has already started the backend work. The passive status mapping keeps execution in the graph and avoids duplicate execution.

Proxy requirements are documented under proxy compatibility.

Interrupt Input¶

The Pipe translates each LGOS langgraph_interrupt batch into one built-in Open WebUI ask_user call. Open WebUI persists that pending call on the saved assistant message, so its native question card survives a page reload. The Pipe keeps the original LGOS calls in the opaque ask_user call ID; answering the card needs no adapter database or live socket callback.

The deliberately small UI profile is an object containing a non-empty question, two or three unique string choices, and optional boolean allow_other. When allow_other is true, Open WebUI adds its free-form Other input. This is a demo-client presentation convention, not an LGOS restriction: the LGOS interrupt protocol accepts any JSON resume value, while this adapter maps Open WebUI choices and free-form answers to strings.

After the user answers, the Pipe decodes the original calls and performs the canonical LGOS replay: the exact assistant tool-call message, including run_id and state_token, followed by one {"resume": ...} result per interrupt. One native ask_user call can contain one to three questions, matching Open WebUI's built-in limit. LGOS itself remains generic and can expose larger atomic batches to clients that support them.

Saved chats restore pending input

Open WebUI's built-in ask_user persistence requires a saved chat. Refreshing the page restores the unanswered card; the LangGraph checkpoint remains pending until the answer reaches LGOS. Cancel ends the Open WebUI turn without resuming the graph, so its checkpoint remains pending. The demo has no expiry worker; production deployments must reap abandoned runs.

The refund demo offers approve, reject, and a custom response. Approval executes the simulated refund and notification, rejection stops the workflow, and custom text is returned as reviewer feedback without executing an action.

The Pipe also forwards Open WebUI's native tool definitions, including ask_user, through the standard Chat Completions tools fields. A compatible model can therefore ask one to three multiple-choice questions with an optional free-form answer; Open WebUI owns the question UI, persistence, and continuation.

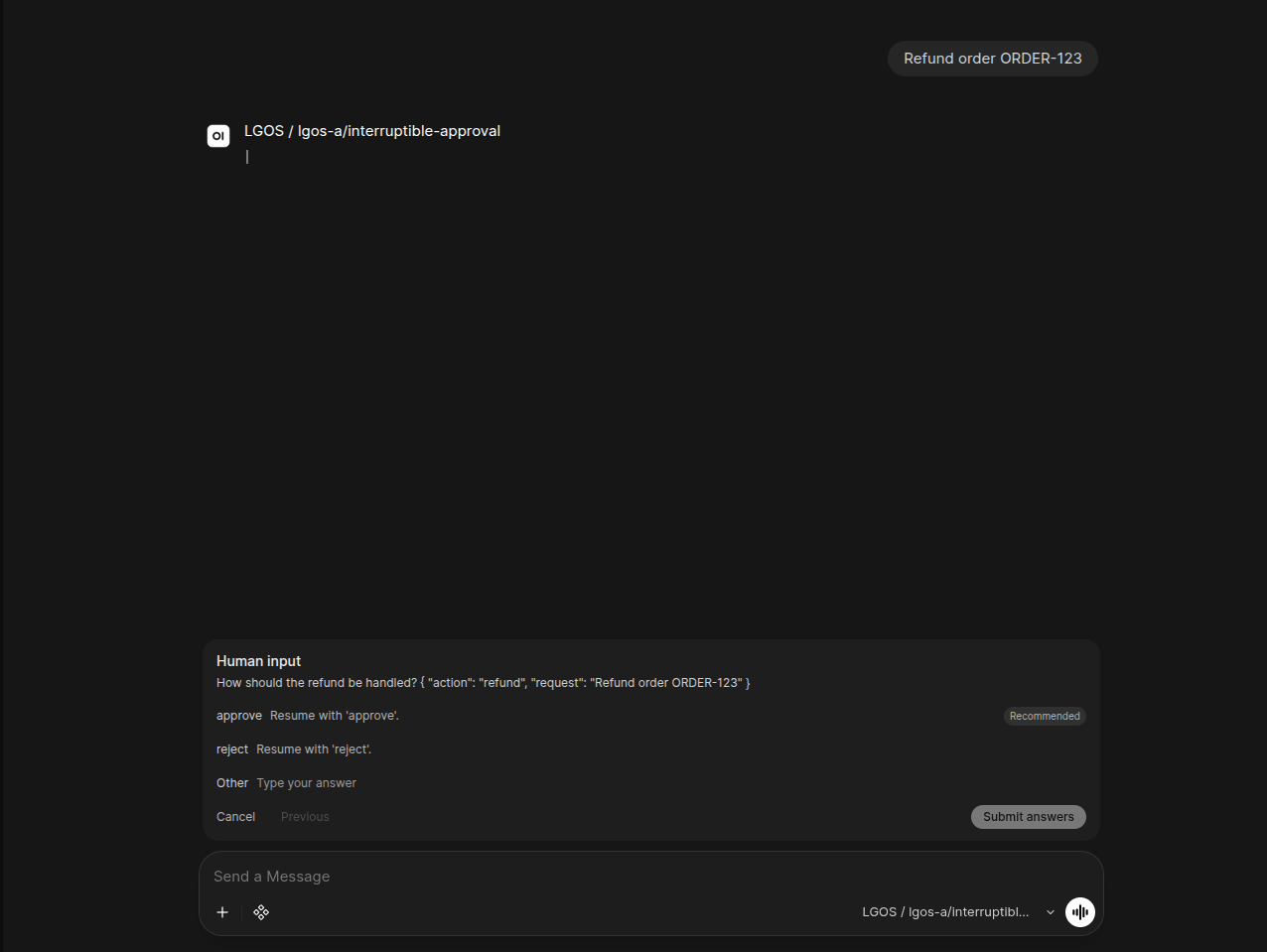

Open WebUI native human input card for a LangGraph interrupt

Open WebUI renders the interrupt as a native ask_user card with choices and an optional free-form answer.

LGOS still owns the pending graph checkpoint and its retention policy. See Interruptible Human Review for server-side checkpoint retention.

See the core citation contract and interrupt protocol for the API behavior beneath the adapter.
