Open WebUI Integration¶

Start with UserValves Simple / simple-graph to try static per-user runtime settings. Its small uservalves_simple.py Filter declares two settings and passes their values to the shared Responses Pipe. Open WebUI owns the settings form and persistence.

The demo includes two Open WebUI Functions:

• functions/uservalves_simple.py demonstrates a fixed UserValves schema for one graph, using Open WebUI's native Filter and UserValves support.

• demo/ui/openwebui/src/lgos_openwebui/functions/generic/ is the modular source for a manifold Pipe for all registered graphs. It uses OpenAI Responses, graph-specific runtime settings, and the standard Files API, and adapts LGOS interrupts to Open WebUI's native question UI.

Each time Open WebUI loads its model list, the Pipe lists every LGOS model in the gateway catalog together with what Open WebUI shows for it: the graph's description, its file-upload capability, its gateway MCP tools, and its LGOS settings as native Chat Variables, which Open WebUI renders as a per-chat form. Graph changes therefore appear on the next model-list load. Each server tool the model advertises in lgos.server_tools adds a Chat Variable checkbox labelled from its name, so server-tool shows Package version and Web search, and deep-research shows only Web search; its gateway MCP tools come from its mcp_tools feature. The Pipe maps an enabled box to {"type":"web_search"} for web_search and to a name-only {"type":"custom","name":...} declaration otherwise, and keeps it out of metadata.lgos_settings. It offers display_file only to models that list it in lgos.client_tools. The catalog publishes both lists in the model's info, where the Pipe reads them at chat time. A question that needs research triggers the deep-research plan review without a graph-specific setting. The Pipe executes only native function_call items. Server custom calls and searches have distinct native types and are already complete. When lgos/simple-graph has valid metadata, the Pipe also lists the UserValves example, which runs the same graph.

Other Gateway Models¶

Open WebUI's own OpenAI connection points at the same gateway root, with the Pipe's credential, so every other model the gateway serves, such as openai/gpt-4.1-mini, appears automatically and uses Open WebUI's built-in chat. That connection also lists the lgos/ graphs, so the app factory hides every lgos/ model it lists, and each graph appears once, through the Pipe, even while the Pipe is disabled or its listing fails. Open WebUI shows every model the gateway lists for the credential, including the embedding and speech models; an admin can hide them in Open WebUI's model settings.

Gateway Credentials¶

Open WebUI's own OpenAI connection to ${OPENAI_GATEWAY_BASE_URL}/v1 decides the credential. Its auth_type in OPENAI_API_CONFIGS applies to its own model list and chats, and the Pipe's model catalog, chats, and file uploads and voice follow it, because they use the same gateway URL.

The demo's openwebui.yml uses bearer with password login. just demo/compose --sso adds the SSO overlay, which switches the connection to system_oauth and passes Open WebUI's OIDC login settings:

DEMO_SSO_ISSUER=https://id.example.com
DEMO_OPENWEBUI_URL=https://webui.example.com
DEMO_OPENWEBUI_OAUTH_CLIENT_ID=YOUR_CLIENT_ID
DEMO_OPENWEBUI_OAUTH_CLIENT_SECRET=YOUR_CLIENT_SECRET
DEMO_OPENWEBUI_OAUTH_SCOPES="openid email profile groups offline_access llm:invoke"
DEMO_OPENWEBUI_OAUTH_AUTHORIZE_PARAMS='{"resource":"https://llm.example.com"}'

With system_oauth, the gateway applies each user's model permissions, budgets, and spend: users see only the models it lists for their token, and every catalog read, chat, and file upload sends that token. A request without one fails instead of falling back to the shared key. Open WebUI refreshes the token with the login's refresh token.

The overlay accepts only SSO sign-ins: it hides the password form and turns off password signup and password sign-in, including through the API. The provider has verified every user, so new users start as regular users without an approval step, and members of its admin group become Open WebUI admins, as in LiteLLM. The role mapping and Open WebUI's group sync read the groups claim, so keep groups in DEMO_OPENWEBUI_OAUTH_SCOPES. To end Open WebUI sessions when users sign out at the provider, register ${DEMO_OPENWEBUI_URL}/oauth/backchannel-logout as the client's back-channel logout URL.

Register ${DEMO_OPENWEBUI_URL}/oauth/oidc/callback with the provider; the overlay sets that callback and Open WebUI's WEBUI_URL from the public URL, and the discovery URL from DEMO_SSO_ISSUER. As with Chainlit's delegated mode, the token's audience must be the LITELLM_OIDC_AUDIENCE the bundled LiteLLM validates. Set the authorize parameters only for providers that use RFC 8707 resource indicators.

The SSO overlay also switches the lgos-gateway MCP connection to system_oauth, so the gateway decides each user's MCP tools as it does their models, and no Open WebUI setting holds the shared key.

Server Tool Switches¶

Select lgos/server-tool, open the Chat Variables control beside the chat input, and enable Package version, Web search, or both. The checkboxes default to off and their values belong to the chat. LGOS executes the selected tools server-side without a client-tool continuation.

The OpenAI SDK in the pinned Open WebUI image omits custom_tool_call_output from one generated response union. The Function adds that existing SDK model to the affected response annotations at load time. The shim is feature-detected, changes no installed package files, and becomes a no-op when Open WebUI updates to an SDK containing the corrected union.

For lgos/deep-research, the same control contains Web search, which its research requires. Search is sent as a standard Responses tool.

Simple Per-User Settings¶

After setup below, select UserValves Simple / simple-graph. Open Controls → Valves, select Functions → UserValves Simple, and choose use_history and audience. These preferences belong to the user and apply across chats using this example. The field definitions are static; their values are editable.

The Filter adds those values to Open WebUI's request metadata as lgos_settings. The shared Pipe sends them unchanged as metadata.lgos_settings; LGOS validates and applies them. The example has no Chat Variables form, so there is only one settings control.

The Pipe attaches the Filter only to the example's model, generic.uservalves_simple; do not enable it globally. The example depends on the Generic Pipe for Responses transport. The lgos/... models below demonstrate schema-driven per-chat settings.

Gateway MCP¶

Compose declares one Streamable HTTP connection, lgos-gateway, in Open WebUI's TOOL_SERVER_CONNECTIONS environment variable. The Pipe selects it by default for each model whose gateway metadata advertises mcp_tools. The Generic Pipe forwards the gateway tools from Open WebUI's native __tools__ map through Responses and returns matching calls to the native tool loop. mcp-postgres adds its fixed report allowlist at the API boundary, while general-purpose graphs can use the gateway-authorized tool catalog without knowing which MCP servers provide it.

The connection URL is OPENAI_GATEWAY_BASE_URL followed by /mcp, the aggregate endpoint both bundled gateways serve, and OPENAI_GATEWAY_API_KEY is its native bearer key; the SSO overlay sends the signed-in user's token instead. That credential determines which MCP tools can be discovered, while the downstream DBHub token remains private to the gateway.

Open WebUI reads TOOL_SERVER_CONNECTIONS on every start. Compose disables Open WebUI's persistent configuration, so changes made to the connection in the admin settings last only until the container restarts.

Keep streaming enabled because Open WebUI's native tool middleware consumes the streamed tool-call shape. The current database example is PostgreSQL Through Native MCP; see it for the complete flow and security boundaries, and Open WebUI's official MCP documentation for its native server administration and access controls.

Setup¶

Start the pinned homeserver-open-webui image, the official Open WebUI slim image with the patches described in the pinned contract note below. Compose reads its tag and digest from DEMO_OPENWEBUI_IMAGE in demo/.env:

cp demo/.env.example demo/.env
just demo/up lgos-openwebui --wait

Compose runs the image's own code with one change: Uvicorn loads lgos_openwebui.app:create_app from the read-only source mount. When Open WebUI starts, the app factory installs the two Functions under demo/ui/openwebui/src/lgos_openwebui/functions/, generic and uservalves_simple. It calls Open WebUI's own Functions API in-process with a short-lived token for an existing admin, built with the claims Open WebUI's own automations use, so it needs no password or API key. In an empty database, that admin is the one WEBUI_ADMIN_EMAIL and WEBUI_ADMIN_PASSWORD bootstrap; an instance whose users sign in with SSO uses an admin it already has. A missing Function is created and enabled, and changed source is updated; the metadata, enabled state, and valves of existing Functions are kept, as are unrelated Functions. Open WebUI stores each Function in its database, so restart the container after changing one. The Generic Function's function.py holds its frontmatter, and its modules are flattened into one executable source string at install time.

The Generic Pipe reads OPENAI_GATEWAY_TYPE, OPENAI_GATEWAY_BASE_URL, and OPENAI_GATEWAY_API_KEY from the Open WebUI container's environment. OPENAI_GATEWAY_BASE_URL must be the root Open WebUI reaches, and the key, which only a bearer connection uses, must be issued by the selected gateway. Open WebUI's connection to the gateway selects the gateway credential. The Pipe's OPENAI_API_TIMEOUT valve remains editable in Open WebUI.

The gateway catalog must contain the LGOS metadata before it can be shown. For independently started components, first sync LGOS model metadata when using LiteLLM; Bifrost publishes it with its catalog sync. The full-stack just demo/compose [--dev] [--otel] variants do this automatically.

LiteLLM's managed /v1/models response is not the UI catalog. The Generic Pipe reads native GET /model/info with the gateway credential. Entries with model_info.lgos supply descriptions, features, and complete settings; model_name remains the inference ID. No provider allowlist, per-provider catalog URL, or LGOS fallback is used. Bifrost uses native /v1/models, and the Pipe decodes additional_attributes.lgos, a JSON string containing descriptions, features, and detailed client-settings schemas. Model descriptions come from each graph's required GraphConfig.description.

Choose an entry such as lgos/simple-graph to use Chat Variables. Its Open WebUI model ID is generic.lgos/simple-graph. LiteLLM sends the catalog's model_name unchanged for managed routing. Bifrost also receives the provider-qualified catalog ID unchanged on native Responses and selects the provider from its prefix.

File Input¶

Models enable Open WebUI's native file-upload control only when the graph advertises file_inputs. Select lgos/file-input in the bundled demo to process an attachment. In the pinned release, __metadata__["user_message"] lists the files attached to the message that started this turn, images included. The Generic Function reads each file's original bytes through Open WebUI's authenticated /api/v1/files/{id}/content endpoint with the caller's credentials, uploads them with purpose="user_data", and appends the returned OpenAI file_id to the message. It never reuploads historical chat attachments or moves them to the latest message. Images use input_file.file_id too; the current LGOS Responses subset does not accept input_image items.

This local file bridge uses the HTTPX shipped by the pinned Open WebUI runtime; it will move to HTTPX2 when Open WebUI adopts OpenAI v3.

The model info is the upload-capability boundary; the Pipe does not add a second remote metadata check to every Responses request.

Compose sends file uploads through the selected gateway's normal /v1 Files route. Bifrost assigns the request to lgos-files; LiteLLM assigns it to litellm_proxy. Both providers target the central Files API.

Compose sets the image's ENABLE_FILE_UPLOAD_PROCESSING=false, so Open WebUI stores the original bytes of a chat upload without extracting or embedding their content before the Pipe runs. The model info also disables chat-time file-context retrieval and the built-in file tools while preserving other built-in tools, including ask_user.

Open WebUI still owns its raw upload copy because its native attachment UI requires an Open WebUI file record. The central Files API is the only processing source of truth and owns the separate inference copy referenced by file_id. The setting applies to every chat upload on this Open WebUI instance, not only to LGOS models.

Voice¶

Compose configures Open WebUI's native speech-to-text and text-to-speech with its openai engines. Both engines call the selected gateway's /v1 audio routes with DEMO_AUDIO_STT_MODEL, DEMO_AUDIO_TTS_MODEL, and DEMO_AUDIO_TTS_VOICE, and with the gateway credential: OPENAI_GATEWAY_API_KEY, or the signed-in user's token with the SSO overlay. The Pipe and LGOS stay text-only.

• Voice mode, the headphones button in an empty chat input, is the hands-free loop. Open WebUI ends a turn after two seconds of silence, transcribes it, and submits the text to the selected model as a normal chat message. It then speaks the answer sentence by sentence.
• The microphone button dictates into the input box for editing before sending.
• Read aloud under an answer speaks it on demand.

Open WebUI always shows these controls to admins, including the demo account. USER_PERMISSIONS_CHAT_STT, USER_PERMISSIONS_CHAT_TTS, and USER_PERMISSIONS_CHAT_CALL hide them only from regular users. Without working speech models, the controls fail with Open WebUI's own error toasts.

In voice mode, Open WebUI adds its own concise-voice-assistant system prompt, which the Pipe forwards to LGOS like any other system message. Set ENABLE_VOICE_MODE_PROMPT=false on the Open WebUI service to send only the transcript.

Limited Functionality¶

Every LGOS model remains visible when its gateway metadata lacks a valid lgos extension. Its name and description say Limited functionality. Standard assistant text may still work; runtime settings, file-upload controls, and gateway tools are not assumed.

Runtime Settings¶

LGOS remains the schema and default-value source of truth. The Pipe uses the same deliberately small JSON Schema subset as the Chainlit demo:

• boolean with a boolean default becomes a checkbox;
• string enum with a valid string default becomes a selector;
• string with a string default becomes a text input;
• integer with an integer default becomes a number input, keeping its minimum and maximum as bounds;
• nested objects, arrays, non-integer numbers, and unsupported schemas are omitted.

Open WebUI stores Chat Variable values on the conversation. Select an LGOS model, then use the Chat Variables control beside the message input. Since LGOS supplies defaults for every setting, the form does not block the first message merely to confirm them.

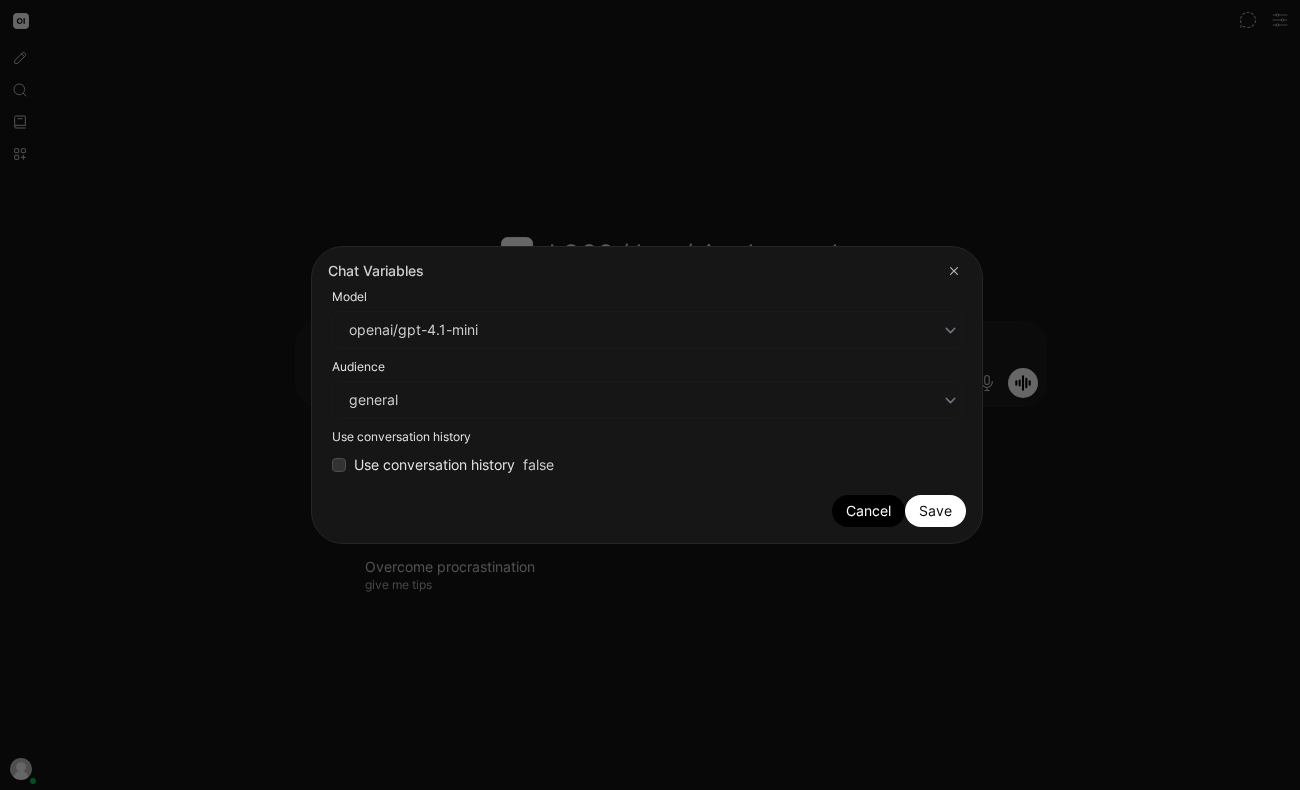

Runtime settings of lgos/simple-graph, read from the gateway catalog and rendered as native Open WebUI Chat Variables.

When a chat has values, the Pipe serializes its Chat Variables and sends them as metadata.lgos_settings. A chat keeps the values of every model selected in it, so the Pipe sends only the variables the selected model declares. The form can return checkbox and number values as text, so the Pipe restores them to JSON booleans and integers. It omits empty values so LGOS applies its defaults, and LGOS performs the authoritative runtime validation.

Models advertising background also receive an opt-in Run in background checkbox. The Pipe keeps this client-owned value out of lgos_settings, polls the non-streaming Response, and publishes native status events until the normal answer renderer takes over. Interrupt answers follow the same checkbox.

The shared Pipe maps Open WebUI's stable chat_id to metadata.conversation_id on every Responses request, including the UserValves example. Langfuse can therefore group the chat's independent request traces into one session, while Open WebUI continues to own and resend the conversation history. The generic Pipe also sends the user's OIDC subject, or Open WebUI's user ID without SSO, as the standard OpenAI safety_identifier; persistent-plot-agent uses both values to scope its chart document. Interrupt resumes reuse the same conversation value. See the persistent plot agent ownership flow for the API Store and Open WebUI persistence boundaries.

Streaming, Status, And Citations¶

The general manifold Pipe uses OpenAI Responses for every model. The SDK stream manager owns event accumulation and supplies the terminal Response; the Pipe adapts final-answer deltas to Open WebUI's native stream interface and maps completed commentary messages to native status history. It translates standard answer URL annotations from the completed Response into persistent native source events, with each cited span as the source excerpt. The SDK owns the complete annotation objects; the Pipe does not rebuild them from deltas. Both modes exclude commentary and accept answer messages without the optional phase field. Transcript replay labels assistant answers as final_answer and preserves explicit phase values, following OpenAI's assistant phase guidance. Inline citation markers remain part of assistant content.

Status descriptions remain active while the Responses/tool loop runs and are finalized when it completes or stops, using Open WebUI's native status events. Both response modes display native refusals. Failed and incomplete streaming events are handled directly so their reason remains visible; incomplete responses never trigger client functions.

The persistent plot graph returns a standard display_file function call. The Pipe downloads the Plotly JSON through the OpenAI Files API and embeds the figure in a small HTML document. The browser renders it with the native Plotly.newPlot API; the Open WebUI backend needs no Python Plotly package. It emits the native persistent embeds event to render an interactive chart in Open WebUI's sandboxed iframe, then returns the matching function_call_output before requesting the final answer. The HTML uses Plotly's versioned CDN script, so browsers must be able to reach cdn.plot.ly. Open WebUI saves the embed with the message for chat reloads; HTML and chart bytes stay out of the upstream model transcript. Image files still use authenticated Open WebUI file storage and the native files event. Each continuation retains the original input, including instructions and file references, then appends complete Response output items and matching tool results. Final-answer text from every call is retained in both modes.

Server custom call/result items have already been executed by LGOS; the Pipe does not execute them or send another result. The chat displays their final assistant answer.

The Pipe returns plain text for non-streaming answers and yields Chat Completions chunk objects for streamed text. Open WebUI JSON-encodes these chunks, so literal text such as data: [DONE] cannot be mistaken for a stream event. Open WebUI owns stream termination. The native ask_user bridge also uses the host's tool-call dictionaries to persist question cards and submit answers. These shapes belong to the UI boundary; inference uses Responses exclusively. See the pinned Pipe host. Shared prompts and graph behavior are documented under Events And Citations and Persistent Plot Agent.

Interrupt Input¶

The Pipe translates each LGOS lgos_interrupt batch into one built-in Open WebUI ask_user call. Open WebUI persists that pending call on the saved assistant message, so its native question card survives a page reload. The ask_user call ID carries the paused Response ID, and each question ID is an LGOS interrupt call ID; answering the card needs no adapter database or live socket callback.

The deliberately small UI profile is an object containing a non-empty question, two or three unique string choices, and optional boolean allow_other. When allow_other is true, Open WebUI adds its free-form Other input. This is a demo-client presentation convention, not an LGOS payload restriction. Responses carries each resume value as a string: the chosen option's label or the free-form text. Open WebUI trims option labels and truncates them to 80 characters, so the Pipe rejects choices it would change.

The question is everything the reviewer reads: the graph writes its details into it, such as the deep-research plan as a list. Other payload fields are data for API clients, and the Pipe does not display them. Open WebUI's card shows its text as one plain line and truncates it to 500 characters. So, as a model using ask_user would, the card asks the question's first paragraph, and the rest goes above it as Markdown text. A first paragraph the card cannot show goes above it too. Once answered, the card folds into Open WebUI's View Result from ask_user, and the text stays in the conversation.

After the user answers, the Pipe sends the Response ID from the card as previous_response_id with one function_call_output item per answered question. LGOS rejects the resume unless the answers cover its complete pending interrupt set. One native ask_user call can contain one to three questions, matching Open WebUI's built-in limit. LGOS itself remains generic and can expose larger atomic batches to clients that support them.

Later requests replay an answered card as a stateless Responses client replays any function call: the text above it as assistant text, then one lgos_interrupt call per question with the card's question and choices, then the answers, so the graph sees what was asked and answered. A cancelled card never resumed the graph, so only its text replays.

The refund demo offers approve, reject, and a custom response. Approval executes the simulated refund and notification, rejection stops the workflow, and custom text is returned as reviewer feedback without executing an action.

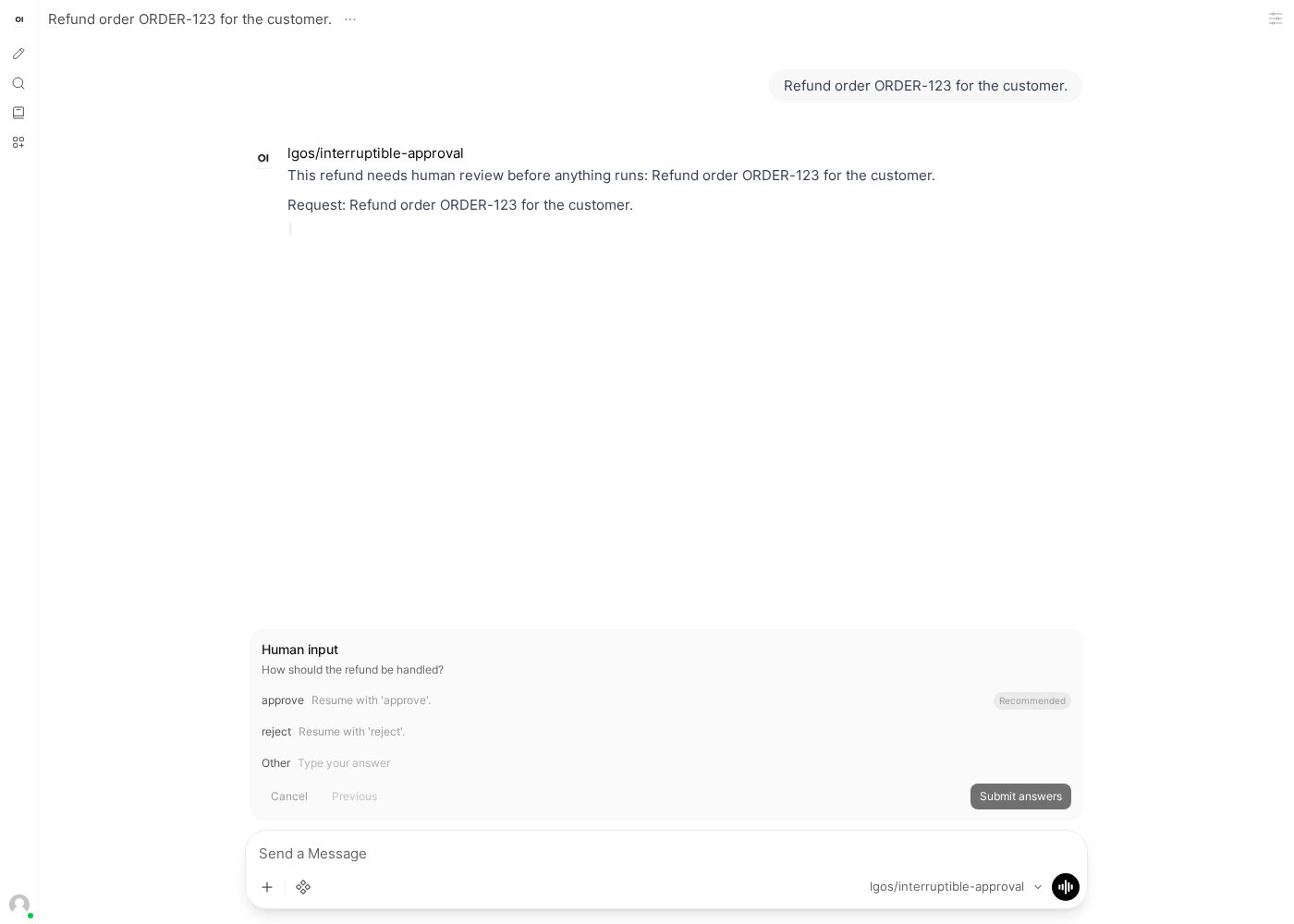

Open WebUI renders the interrupt as a native ask_user card with choices and an optional free-form answer.

LGOS still owns the pending graph checkpoint and its retention policy. See Interruptible Human Review for server-side checkpoint retention.

See the core citation contract and interrupt protocol for the API behavior beneath the adapter.
